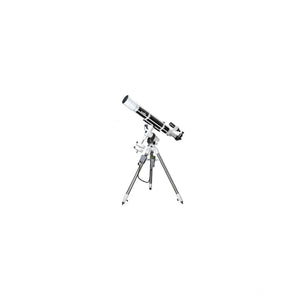

Skywatcher Evostar 120 EQ5 Synscan - Refractor

The Sky-Watcher Evostar 120/1000 optical tube is a 120mm diameter achromatic refractor with a 1000mm focal length. The large diameter allows for much more light gathering, making it easier to observe dimmer objects. A highly respectable piece of optics with good features and quality, accessible to everyone, especially given its very low price.

The long focal length of this Sky-Watcher Evostar helps to improve and increase the resolving power of this instrument. Versatile and lightweight, it can be used for both deep-sky and planetary observation, for both visual and photographic purposes.

FEATURES
Type Achromatic Refractor
Optical Design Achromatic Doublet
Diameter 120 mm
Focal Length 1000 mm
Focal Ratio f/8.3
Max. Magnification 240x
Anti-reflective Coating
Focuser Crayford 2" / 1.25"
Weight 6.4 kg

EQUIPMENT
Eyepieces and eyepiece accessories 2" LET 28mm (35x), 90° 2" mirror diagonal with 1.25" adapter.
Finderscope 9x50

Sky-Watcher EQ5 equatorial mount with micrometric movements on both axes – Synscan motorized.

Some features:

220V mains power adapter included
ideal for both astrophotography and visual use
motorized with the Synscan GOTO system
GPS compatible
over 42,000 objects in the Synscan memory

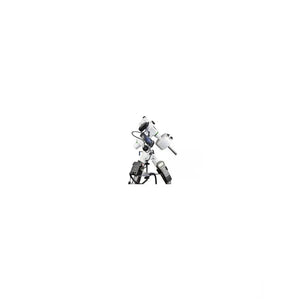

The EQ5 mount is a solid base for your telescope, whether you want to practice astrophotography or just visual observation. The micrometric movements on both axes allow for smooth and precise tracking. Motorized with Sky-Watcher's famous Synscan GOTO system, which will also allow you to practice long-exposure astrophotography thanks to the ST4 port integrated into the system. Furthermore, the included polar scope will allow you to perform precise polar alignment, thanks also to the precise azimuth and altitude adjustments.
It can mount telescopes equipped with a Vixen dovetail bar, thanks to its mounting flange. It has a maximum payload of approximately 10kg, allowing you to mount Newtonians up to 200mm in diameter, refractors up to 120mm, or 150mm if they are short-tube. Or even SCs up to 200-230mm. It can also be controlled via computer using the supplied RS232 cable, connected to the SynScan hand controller (in PC-direct mode) and using the excellent EQMOD drivers available for free on the internet. The steel tripod has a variable height from 80 to 130cm and provides great stability to the system.

The Sky-Watcher Synscan system is a very precise tool that will guide you to easily find objects to observe, whether they are nebulae or planets, as well as remote galaxies. Point to the desired object by pressing just one button! The easy-to-use menu allows you to navigate easily to choose from the tens of thousands of objects available to observe.

Additionally:

database of over 40,000 objects
2-3 star alignment
possibility to improve pointing accuracy with the PAE function
precise pointing up to 10 arcminutes
tracking speed: sidereal, lunar, solar
speed: 1x, 2x, 16x, 32x, 64x, 128x, 400x, 500x, 600x, 800x
tracking speed for astrophotography: 0.25x, 0.5x, 0.75x
2-axis tracking
servo motors with 0.8923 arcsecond resolution or 1,452,425 steps/rev
can be connected to a computer
the hand controller firmware can be upgraded via the internet

FEATURES
Type: GoTo Equatorial Mount
Motor speed: from 0.25x to 800x
Tracking speed: Sidereal, Lunar and Solar
Hand controller: SynScan
Database: 42,000 objects
Maximum payload: 10 Kg
EQUIPMENT
Accessories: Adjustable steel tripod, 2x5kg counterweights, Polar Scope, 220v mains power adapter.

Main features

Skywatcher quality for a reliable and rewarding observation experience.

• Diameter (mm): 120
• Focal length (mm): 1000
• Aperture ratio: f/8.3
• Integrated Wi-Fi: NO

Main technical specifications
